Polaris LED Flood Light-TS-BJX
Polaris modular lights combine up to 16 modules for factories, stadiums, ports and docks. A choice of 60°, 25° and 15° optics supports wide-area and long-range illumination. An aluminium fin heat sink and isolated driver support cooling and reliable operation. The range supports 120–277V input, a 5-year warranty and complete-unit or SKD supply.
1.【Modular Multi-scene Use】: 1–16 combinable modules for factories, stadiums, ports and docks.
2.【Diverse Beam Options】: 60° wide & 25°/15° long-range lenses for high-pole lighting.
3.【Global Long-life Power】: Zhihe/Letford isolated driver, 120–277V wide voltage, 5-year warranty.
4.【Competition-grade Cooling】: Aviation aluminum fin radiator, compliant with FIFA & 4K flicker-free standards.

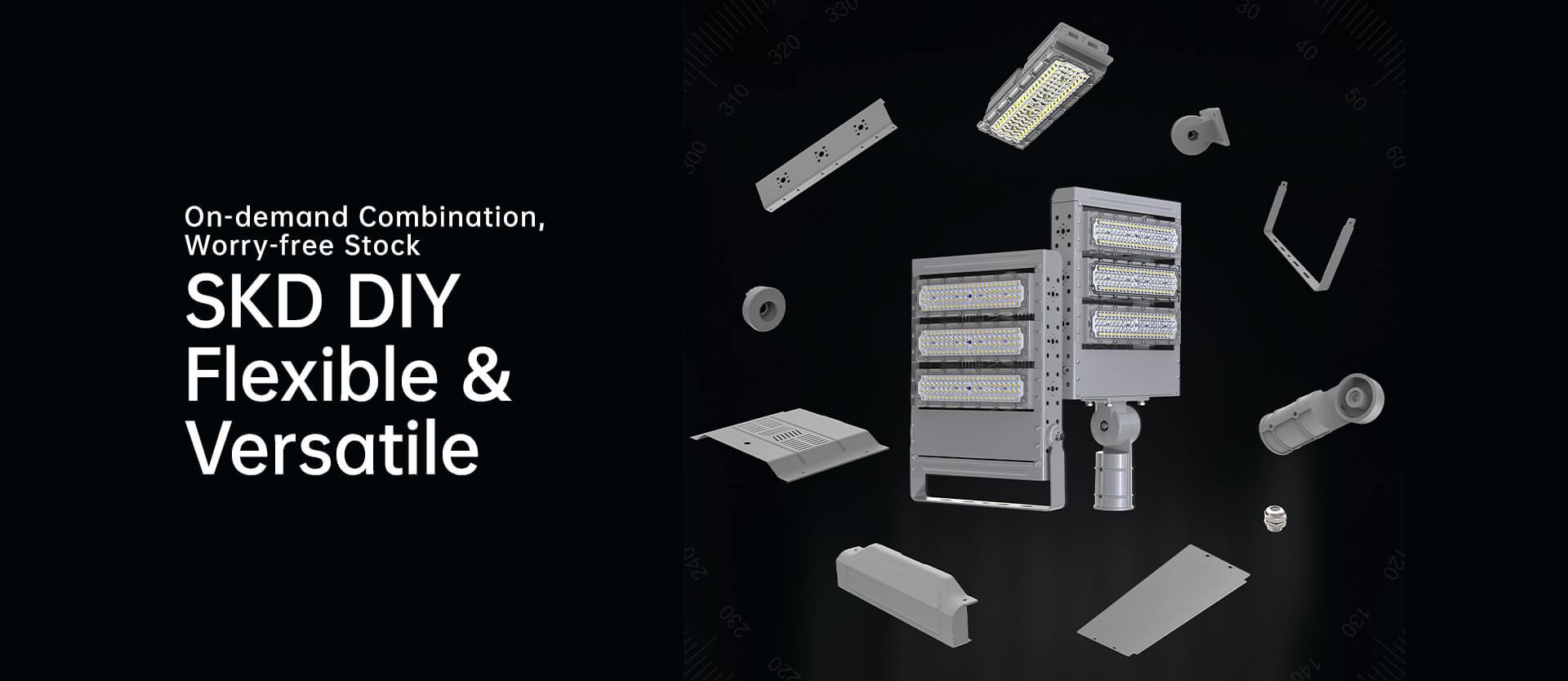

5.【Flexible Shipment】: Whole unit or SKD kits to cut tariffs and enable local assembly.
- Power
- 100 W / 200 W / 300 W / 500 W / 1000 W / 1500 W
- Luminous flux
- 15000 lm / 30000 lm / 45000 lm / 75000 lm / 150000 lm / 225000 lm
- Efficacy
- 150 lm/W
- CCT / CRI
- 3000 K / 4000 K / 5000 K / 5700 K · Ra≥80
- Beam angle
- 15 ° / 25 ° / 45 ° / 60 ° / 90 ° / 30 °×70 °
- IP / IK
- IP66

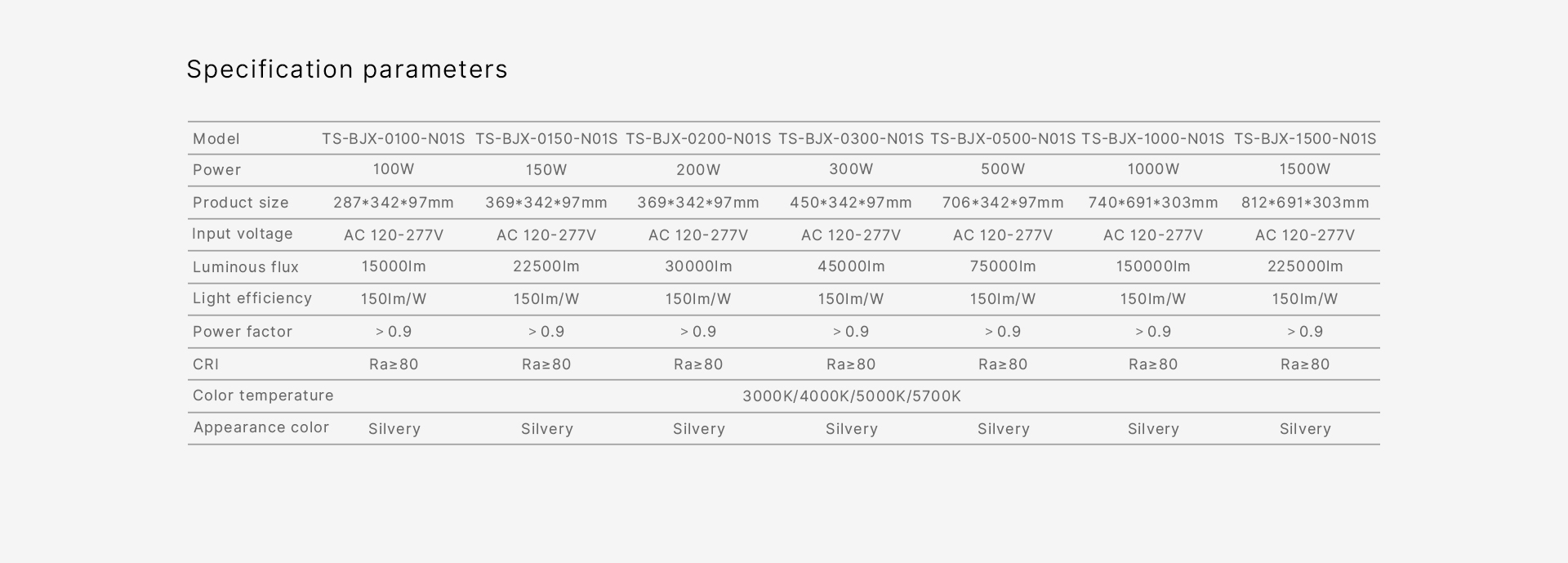

Specifications
| Power | 100W/ 200W/ 300W/ 500W/ 1000W/ 1500W |
|---|---|
| Light efficiency | 150lm/W |
| Input voltage | AC 120-277V |
| Color temperature | 3000K/ 4000K / 5000K/ 5700K |
| Luminous flux | 15000lm/ 30000lm/ 45000lm/ 75000lm/ 150000lm/ 225000lm |
|---|---|
| Beam angle | 15° 25° 45° 60° 90° 30°*70° |
| CRI | Ra≥80 |
| Product Size (mm) | 287*342*97; 369*342*97; 450*342*97; 706*342*97;738*691*293;812*691*303 |
