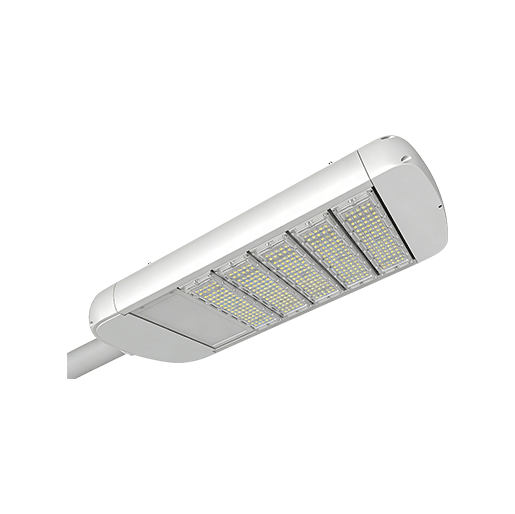

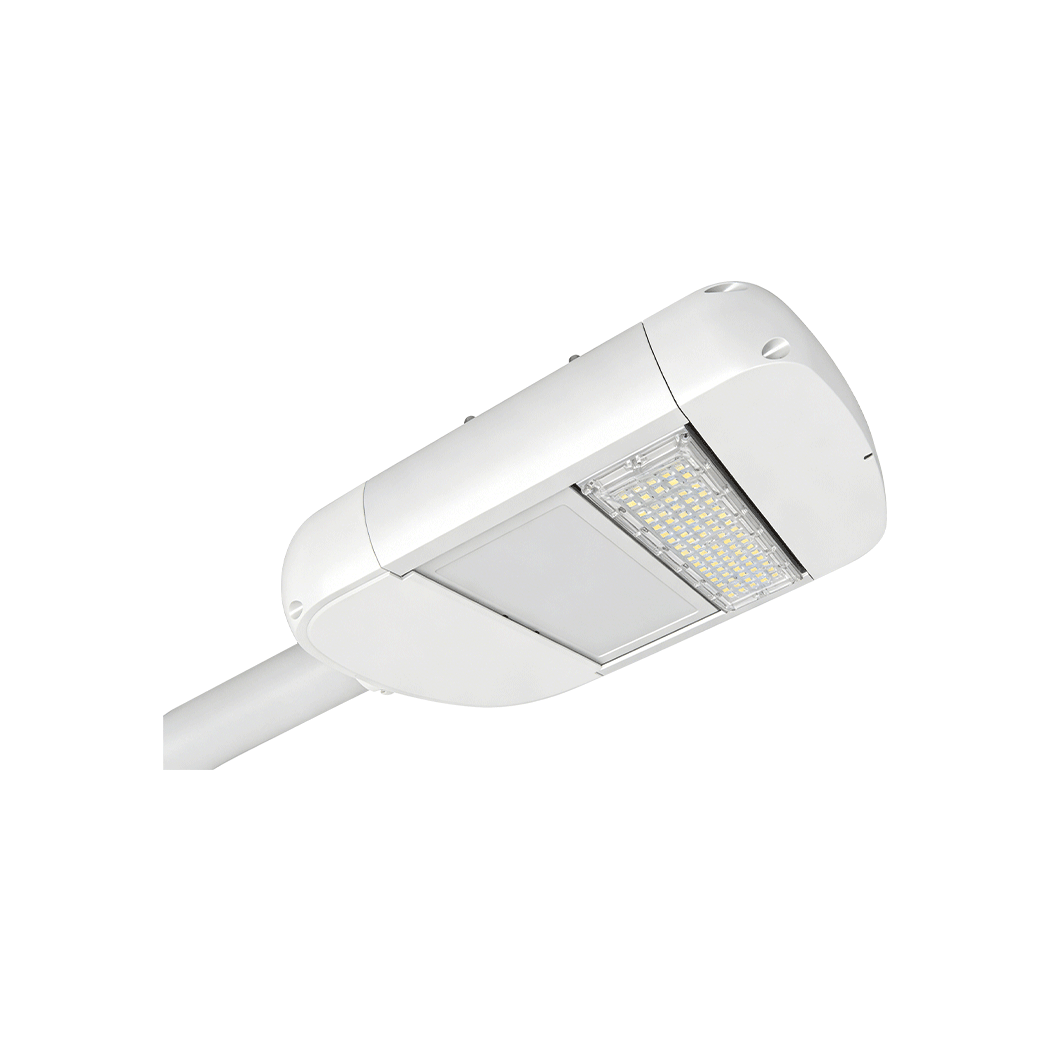

Street Light-LD6A
LD6A modular street lights offer 150lm/W efficacy across a 50–350W range. Interchangeable modules simplify maintenance and replacement. A lightweight body with hollow cooling channels helps dissipate heat. Wide 100–277V input and road optics suit highways and rural roads, with SKD supply available.
1.【High Luminous Efficiency】: 150lm/W, 50–350W options, PF＞0.95, even road illumination & energy saving
2.【Modular Easy Maintenance】: Interchangeable modules for flood/tunnel lights, simple replacement & low service cost
3.【Hollow Heat Dissipation】: Streamlined lightweight body with hollow top for good cooling, wind-resistant & low light decay
4.【Wide Voltage Flexible Design】: 100–277V wide voltage, reserved sensor space, optional quick plug for global grids
5.【Multi-scene Municipal Use】: Multiple CCT & CRI options, 150°*75° road lens, fit highways & rural roads, whole unit & SKD supply
- Power
- 50 W / 100 W / 150 W / 200 W / 250 W / 300 W / 350 W
- Luminous flux
- 4500 lm / 15000 lm / 22500 lm / 30000 lm / 37500 lm / 45000 lm / 52500 lm
- Efficacy
- 150 lm/W
- CCT / CRI
- 3000 K / 4000 K / 5000 K / 5700 K · Ra≥70 / Ra≥80
- Beam angle
- 150 °×75 °
- IP / IK
- IP65
Specifications
| Power | 50W/ 100W/ 150W/ 200W/ 250W/ 300W/ 350W |
|---|---|
| Luminous flux | 4500lm/ 15000lm/ 22500lm/ 30000lm/ 37500lm/ 45000lm/ 52500lm |
| Light efficiency | 150lm/W |
| Input voltage | AC 100-277V |
| Color temperature | 3000K/ 4000K / 5000K/ 5700K |
|---|---|
| Beam angle | 150°*75° |
| CRI | Ra≥70/ Ra≥80 |
